3+9×0.22+0.15

Tyre Steel Cord

Description

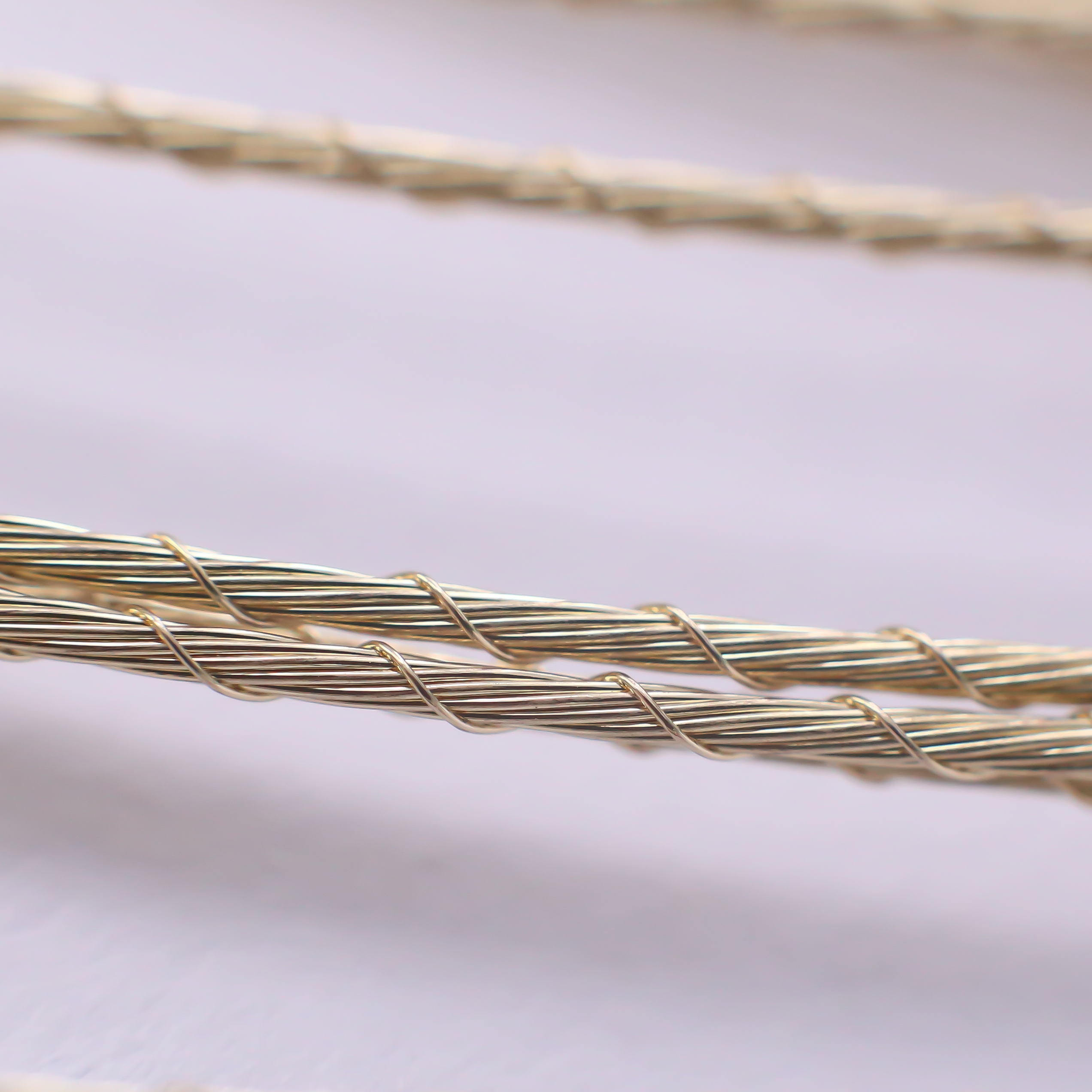

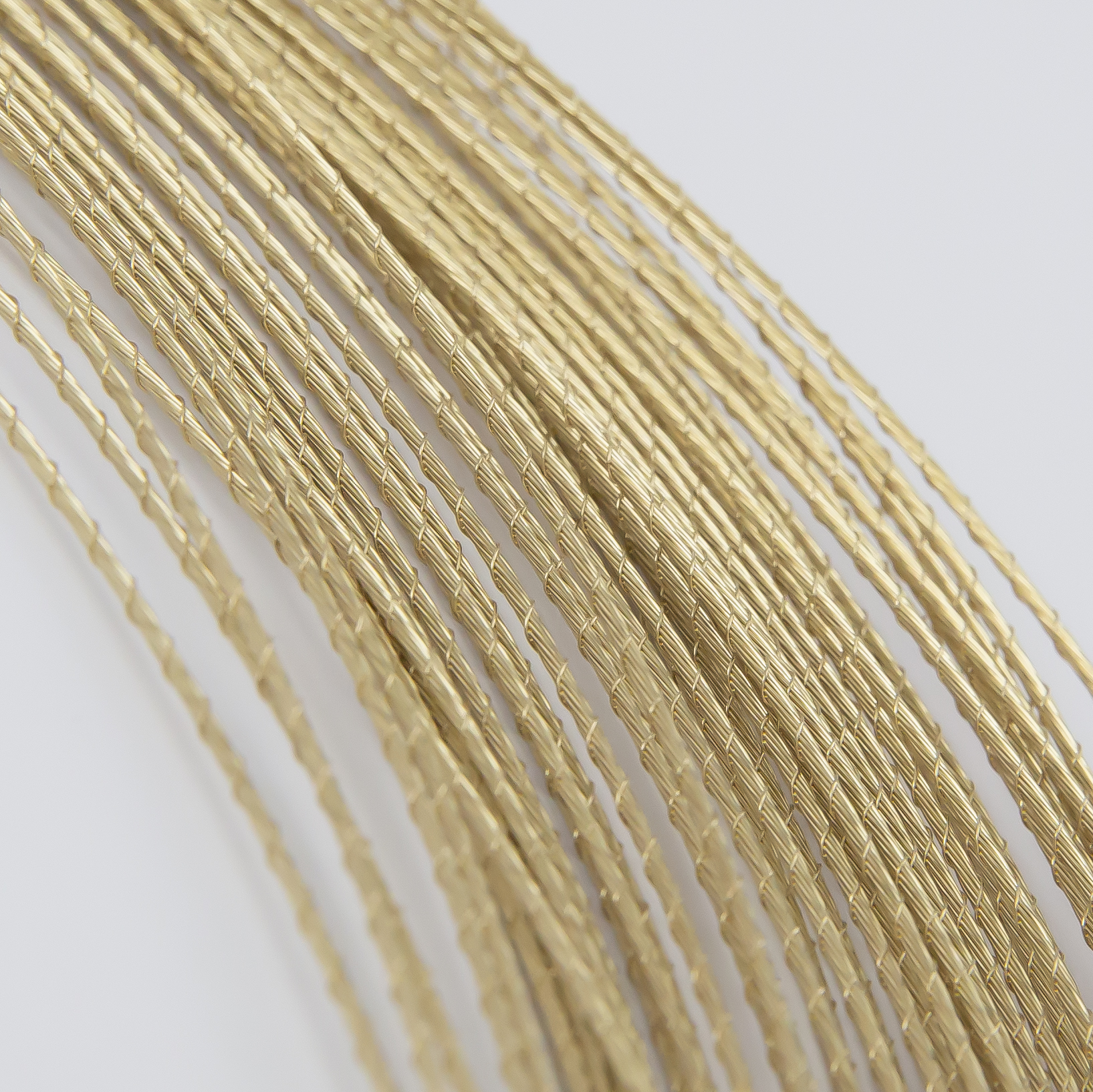

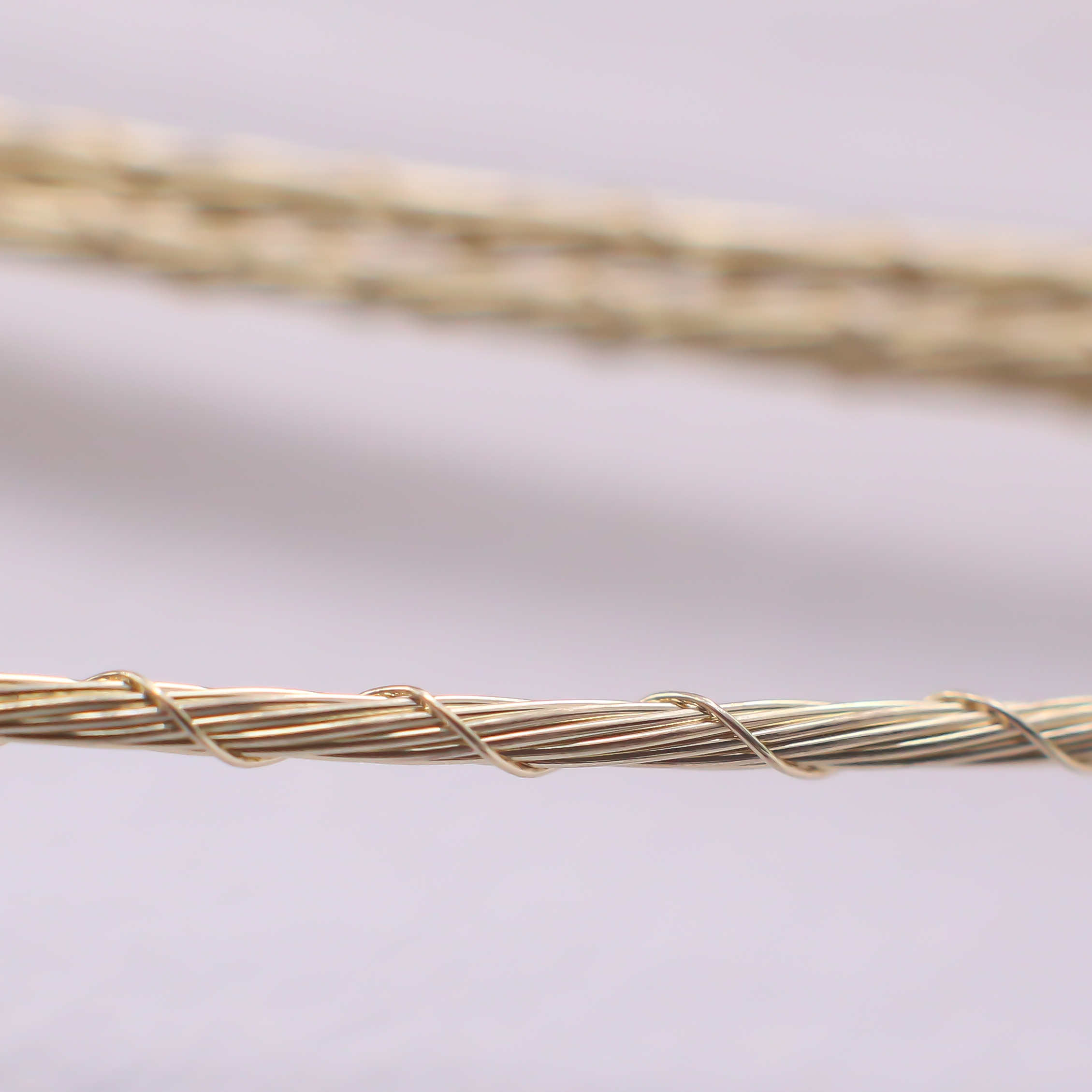

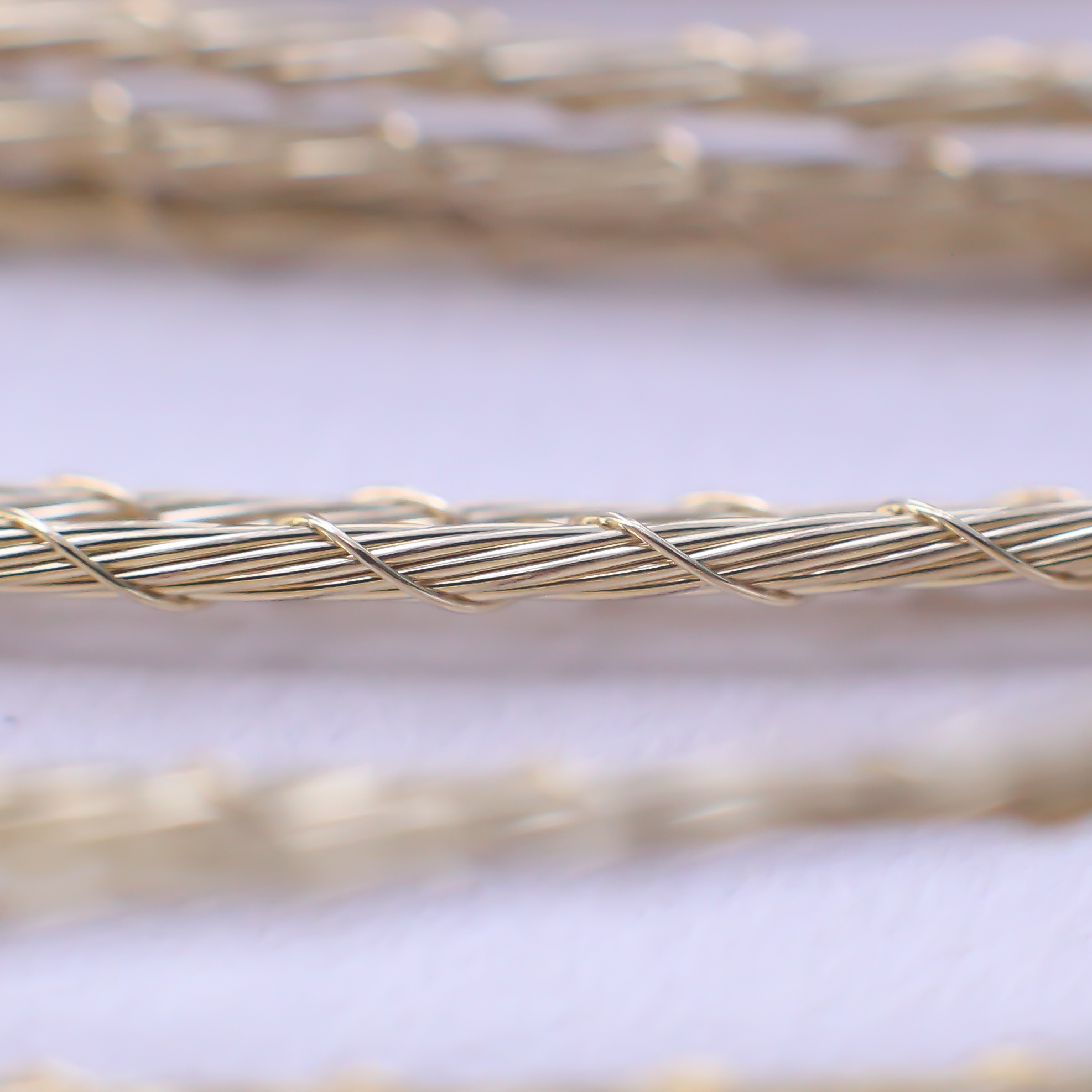

Brass Coated Steel Cord which is made of high-carbon steel, its surface plates brass that can be adhered to rubber easily. The steel cord applies to radial tires as reinforcing material that have the advantages of long service life, high puncture resistance and good resilience. And it also makes tires more stable, more comfortable, safer and more energy-saving.

Product Details

Product Parameters

Construction	Lay Length (±5%)/mm	Lay Direction (S/Z)	Diameter (±5%)/mm	Min Breaking Force (N)				Linear Density (±5%)g/m
Construction	Lay Length (±5%)/mm	Lay Direction (S/Z)	Diameter (±5%)/mm	NT	HT	ST	UT	Linear Density (±5%)g/m
3+9*0.22	6.3/12.5	S/S	0.920	1185	1360	1490	/	3.650
3+9*0.22+0.15	6.3/12.5/3.5	S/S/Z	1.170	1185	1360	/	/	3.850
3+9*0.25	7.0/14.5	S/S	1.020	/	1710	1890	/	4.710
3+9*0.25+0.15	7.0/14.5/5.0	S/S/Z	1.310	/	1710	1890	/	4.890
0.20+18*0.175CC	10	Z	0.900	1230	1440	1520	/	3.660
0.22+18*0.20CC	12.5	Z	1.020	1620	1805	2010	/	4.840
0.25+18*0.22CC	16	Z	1.130	1905	2170	2010	/	5.850
0.22+6+12*0.20	6.3/12.5	Z/Z	1.020	/	1805	/		4.860
0.25+60.22+120.20	6.3/16.0	Z/Z	1.090	/	1975	/	/	5.260
0.25+6+12*0.225	8.0/16.0	Z/Z	1.130	/	2225	/	/	6.050
3+8+13*0.18+0.15	5.0/10.0/16.0/3.5	S/S/Z/S	1.340	/	1680	/	/	5.100
3+8+13*0.22+0.15	6.0/12.0/18.0/3.5	S/S/Z/S	1.560	/	2550	/	/	7.500
3+9+15*0.175	5.0/10.0/16.0	S/S/Z	1.070	1680	/	/	/	5.200
3+9+15*0.175+0.15	5.0/10.0/16.0/3.5	S/S/Z/S	1.340	1680	/	/	/	5.420
3+9+15*0.22	6.3/12.5/18.0	S/S/Z	1.350	2650	2945	/	/	8.270
3+9+15*0.22+0.15	6.3/12.5/18.0/3.5	S/S/Z/S	1.620	2650	2945	/	/	8.500
3+9+15*0.225	6.3/12.5/18.0	Z/Z/Z	1.390	/	3120	3450	/	8.630
3+9+15*0.225+0.15	3.6/12.5*18.0/5.0	Z/Z/Z/S	1.630	/	3120	3450	/	8.780
3+9+15*0.245	6.3/12.5/18.0	Z/Z/Z	1.510	/	3730	/	/	10.260
3+9+15*0.245+0.15	3.6/12.5*18.0/5.0	Z/Z/Z/S	1.770	/	3730	/	/	10.260
770.22+0.15	12.5/20.0/5.0	S/Z/S	2.240	4650	5120	/	/	15.200
770.25+0.15	12.5/20.0/5.0	S/Z/S	2.520	/	6350	/	/	19.800
770.28+0.15	12.5/20.0/5.0	S/Z/S	2.790	/	7780	/	/	24.850
7(3+90.245)+0.20	6.3/12.5/28.0/5.0	Z/Z/S/S/Z/S	3.300	/	9000	/	/	33.070
7(3+90.3)+0.20	12.5/18.0/32.0/5.0	Z/Z/S/S/Z/S	3.900	/	15200	/	/	49.270
7(3+9+150.175)+0.20	5.0/10.0/16.0/38.0/5.0	S/S/S/Z/Z/Z/S/Z	3.580	/	11470	/	/	37.500
7(3+9+150.22)+0.22	6.3/12.5/18.0/48.0/5.0	S/S/S/Z/Z/Z/S/Z	4.420	/	17955	/	/	59.160
7(3+9+150.245)+0.245	6.3/12.5/18.0/56.3/5.0	S/S/S/Z/Z/Z/S/Z	4.840	/	22385	/	/	73.900
7190.20	6.0/10.0/8.0/13.0/23.0	Z/Z/S/S/Z	3.300	9800				39.000

Application Area
