3×0.30HT

Tyre Steel Cord

Description

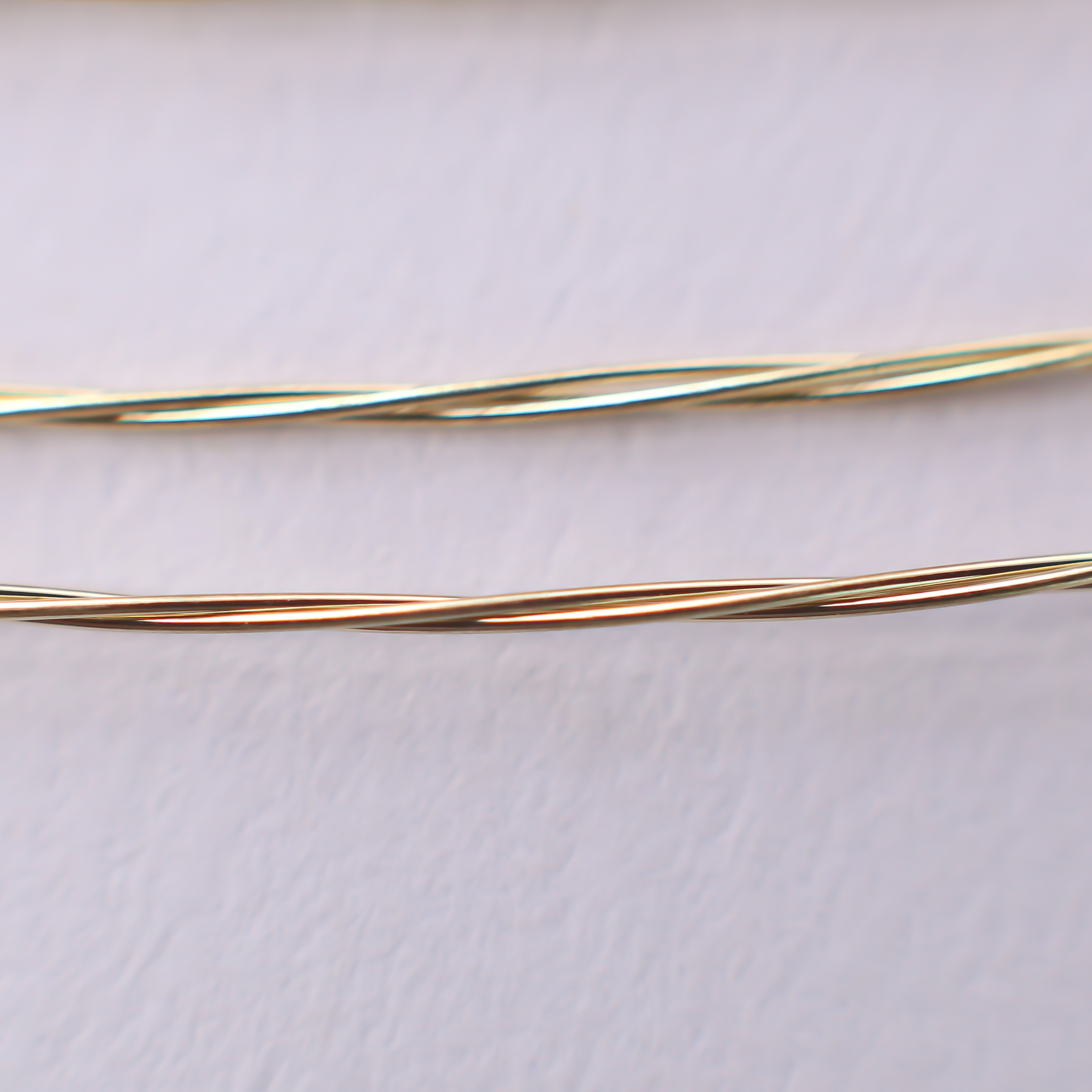

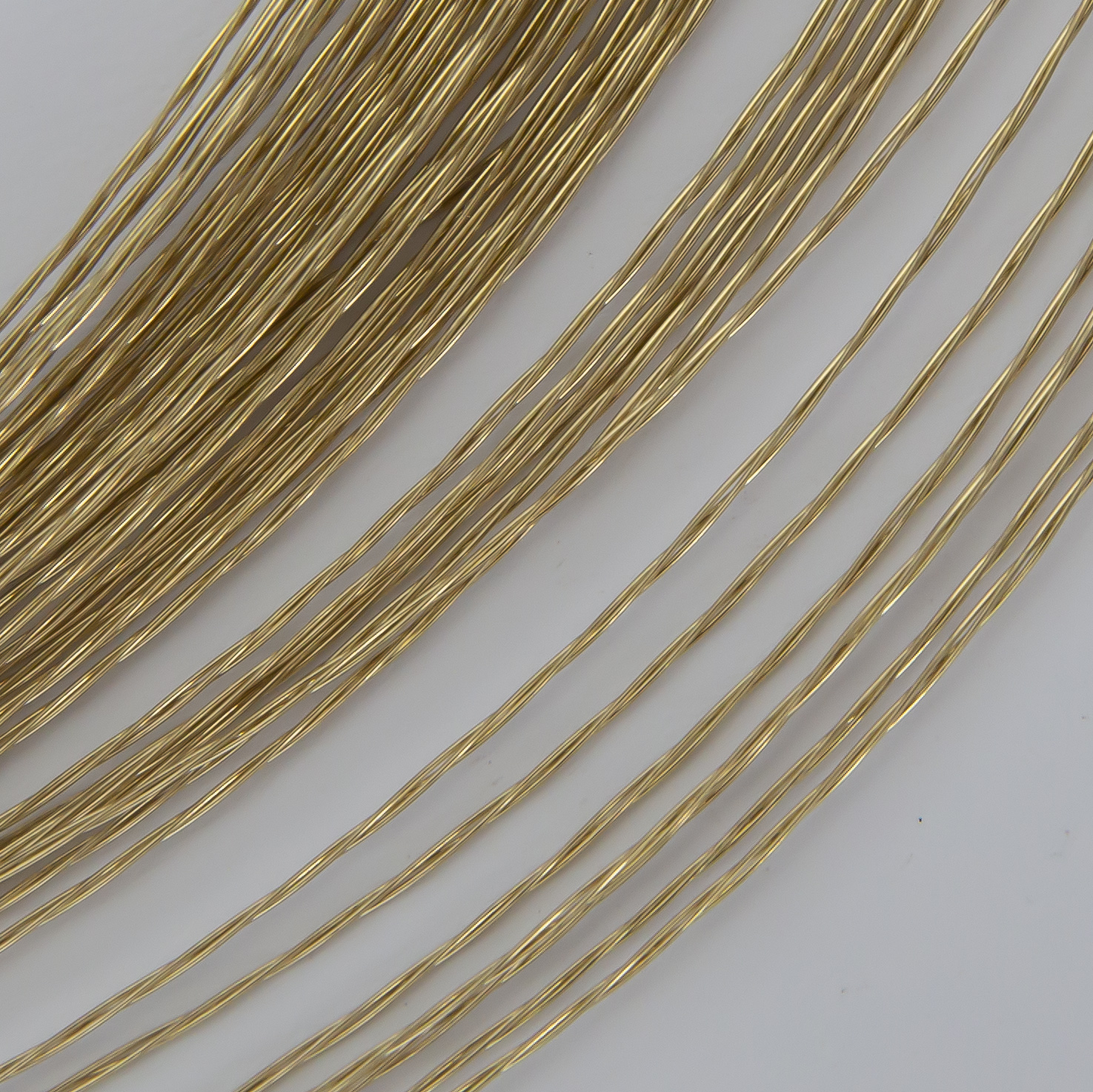

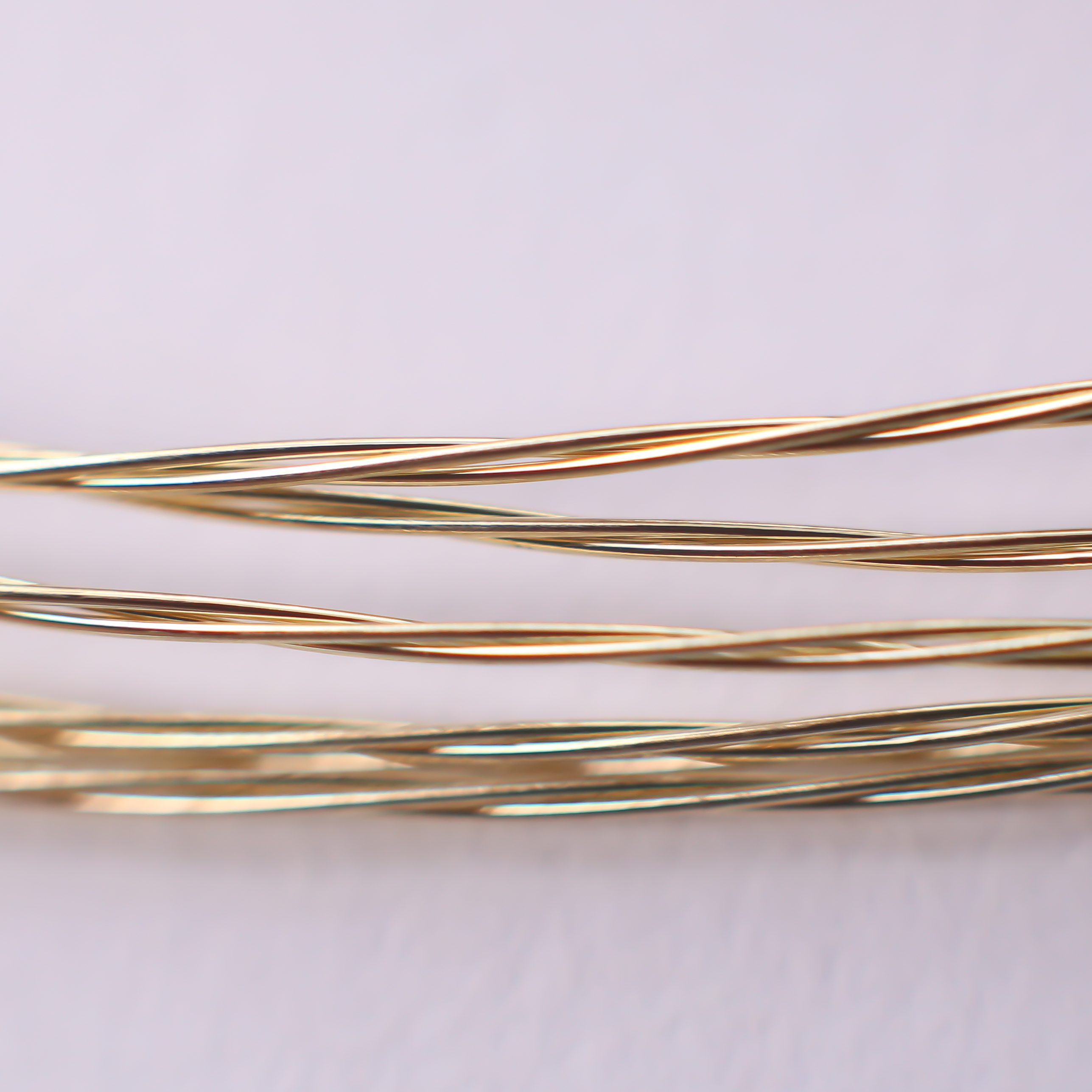

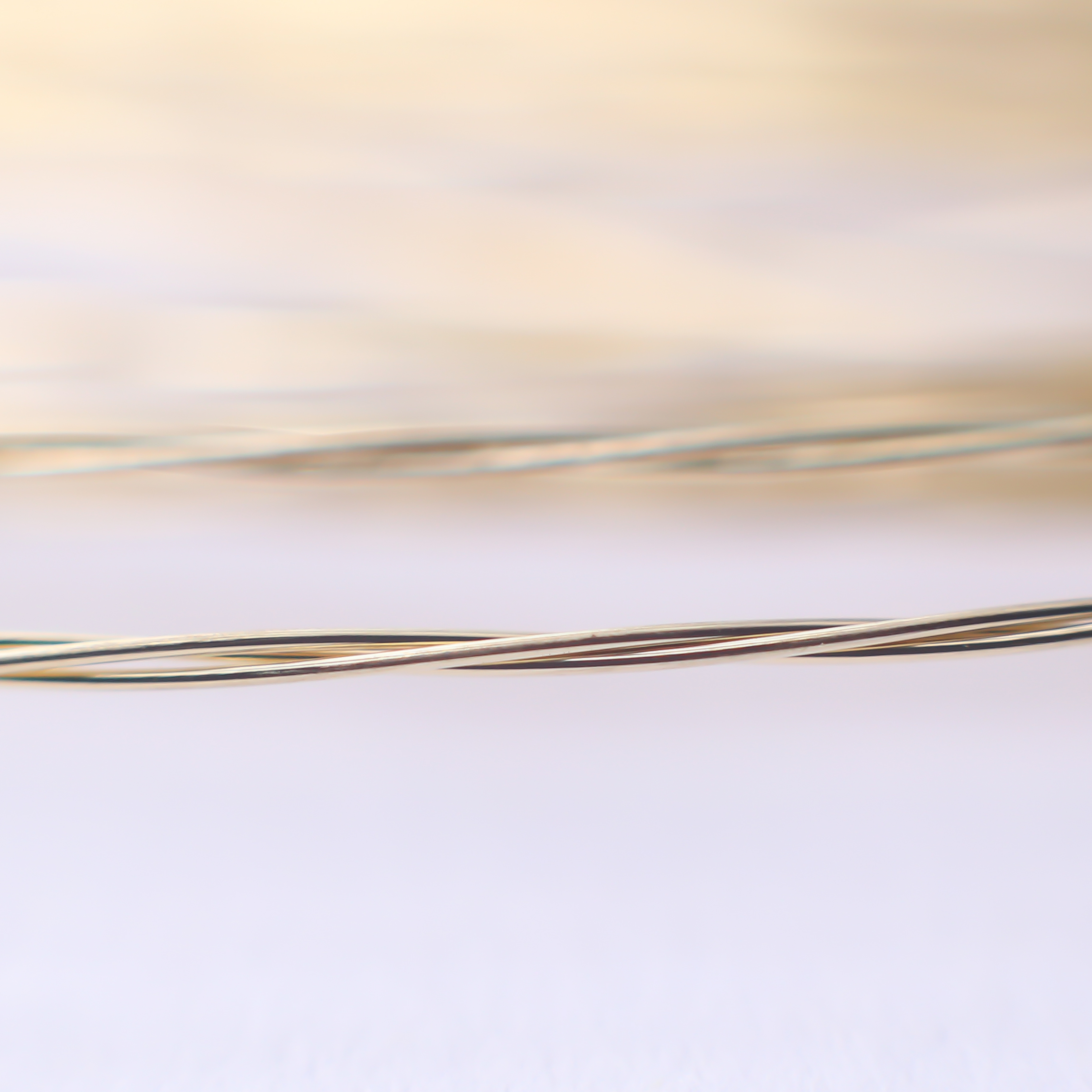

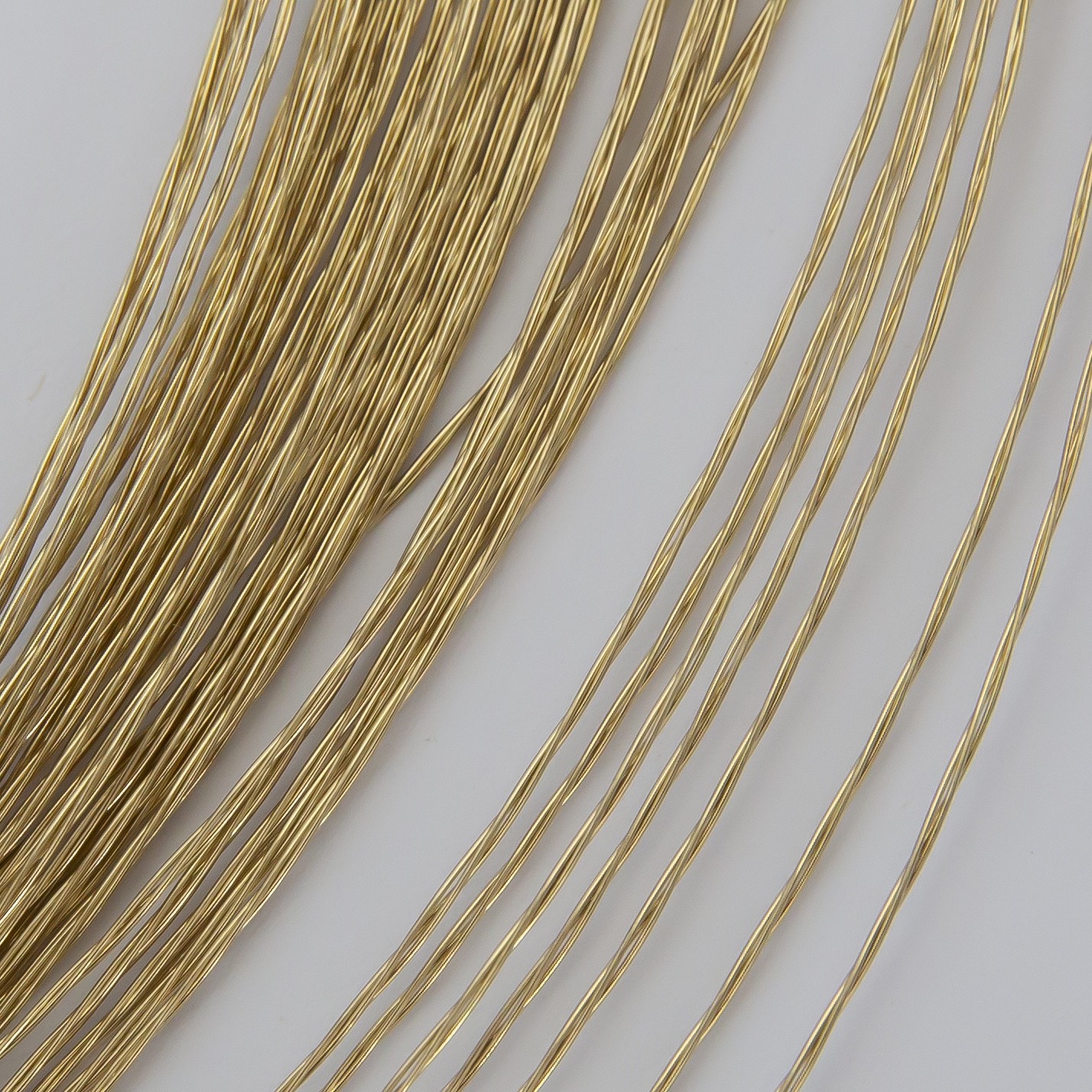

Brass Coated Steel Cord which is made of high-carbon steel, its surface plates brass that can be adhered to rubber easily. The steel cord applies to radial tires as reinforcing material that have the advantages of long service life, high puncture resistance and good resilience. And it also makes tires more stable, more comfortable, safer and more energy-saving.

Product Details

Product Parameters

Construction	Lay Length (±5%)/mm	Lay Direction (S/Z)	Diameter (±5%)/mm	Min Breaking Force (N)				Linear Density (±5%)/g/m
Construction	Lay Length (±5%)/mm	Lay Direction (S/Z)	Diameter (±5%)/mm	NT	HT	ST	UT	Linear Density (±5%)/g/m
2*0.28	14	S	0.560	/	/	385	425	0.970
2*0.30	14	S	0.600	/	405	445	485	1.120
2+1*0.25	∞/11.0	-S	0.630	/	427	470	520	1.160
2+1*0.28	∞/14.0	-S	0.710	460	510	570	/	1.455
2+1*0.30	∞/14.0	-S	0.750	520	510	670	/	1.670
3*0.27TR	14	S	0.580	/	470	535	/	1.350
3*0.28	16	S	0.600	/	480	570	620	1.460
3*0.30	16	S	0.650	520	610	670	/	1.680
3*0.30OC	16	S	0.670	520	610	670	/	1.680
3*0.38	20	S	0.800	/		980	/	2.670
2+2*0.25	∞/14.0	-S	0.650	490	570	630	/	1.550
2+2*0.28	∞/16.0	-S	0.740	615	680	770	/	1.950
2+2*0.30	∞/16.0	-S	0.780	690	810	890	/	2.230
2+2*0.32	∞/16.0	-S	0.930	800	890	980	1080	2.570
2+2*0.35	∞/16.0	-S	0.940	900	1025	1175	1280	3.030
2+2*0.38	∞/16.0	-S	1.000	1040	1165	/	/	3.600
2+3*0.30	∞/16.0	-S	0.900	/	1010	1110	/	2.790
2+4*0.17	∞/10.0	-S	0.480	/	/	/	475	1.080
2+4*0.22	∞/14.0	-S	0.680	/	655	/	/	1.810
5*0.30	16	S	0.810	/	1010	/	/	2.800
5*0.35	17	S	0.940	/	1310	/	/	2.800
5*0.38	18	S	1.030	/	1505	/	/	4.510
3+2*0.30	∞/16.0	-S	0.950	/	1010	1115	1225	2.790
3+2*0.35	∞/18.0	-S	1.070	/	1305	1470	/	3.820
3+3*0.35	∞/18.0	-S	1.090	/	1565	/	/	4.527
2+7*0.22	6.3/12.5	S/S	0.830	890	1010	/	/	2.740
2+7*0.22+0.15	6.3/12.5/5.0	S/S/Z	1.080	890	1010	/	/	2.900
2+7*0.25	7.0/14.0	S/S	0.950	/	1285	1430	/	3.530
2+7*0.26	7.5/15.0	S/S	1.050	/	1340	1500	/	3.800
2+7*0.28	8.0/16.0	S/S	1.060	1380	1530	1710	/	4.450
2+7*0.28+0.15	8.0/16.0/3.5	S/S/Z	1.330	1380	1530	/	/	4.640
2+7*0.30	8.0/16.0	S/S	1.160	/	1770	2005	/	5.080
2+7*0.34	8.0/18.0	S/S	1.340	/	2235	/	/	6.530
2+8*0.30	8.0/16.0	S/S	1.210	/	2025	/	/	5.700
0.315+6*0.30	16	S	0.920	/	1360	1550	/	3.990
0.365+6*0.35	18	S	1.080	/	1860	2040	/	5.420
30.15+60.27	9.0/10.0	Z/S	0.850	1000	/	/	/	3.170
30.175+60.30	9.5/15.5	Z/S	0.980		1400	/	/	3.950
30.175+60.32	9.5/15.5	Z/S	1.040	1380	1540	/	/	4.420
30.20+60.35	10.0/18.0	S/Z	1.130	1150	1850	/	/	5.340
4+3*0.35	∞/18.0	-S	1.190	/	1825	2035	/	5.310
4+6*0.30	∞/18.0	-S	1.180	/	1980	2210	/	5.620
4+6*0.35	∞/20.0	-S	1.460	/	2430		/	7.680
4+6*0.38	∞/22.0	-S	1.580	/	2815	3350	/	8.950
3+8*0.20	6.3/12.5	S/S	0.850	/	1010	/	/	2.780
3+8*0.22	6.0/12.0	S/S	0.910	/	1240	1355	/	3.330
3+8*0.33	10.0/20.0	S/S	1.340	/	2650	2940	/	7.520
3+8*0.35	10.0/20.0	S/S	1.440	/	2860	/	/	8.440
12*0.20+0.15CC	12.5/3.5	S/Z	1.100	995	/	/	/	3.170
12*0.22CC	12.5	S	0.910	1185	1360	/	/	3.640
12*0.22+0.15CC	12.5/3.5	S/Z	1.180	1185	1360	/	/	3.840
30.20/90.175CC	10	S	1.750	835	950	1050	1150	2.490
30.20/90.175+0.15CC	10.0/3.5	S/Z	1.020	835	950	/	/	2.650
30.22/90.20CC	12.5	S	0.850	1050	1185	1320	1145	3.170
30.22/90.20+0.15CC	12.5/5.0	S/Z	1.110	1050	1185	/	/	3.330
30.24/90.225	14	S	0.940	/	1445	/	/	3.940

Application Area
