0.89mm

Bead Wire

Description

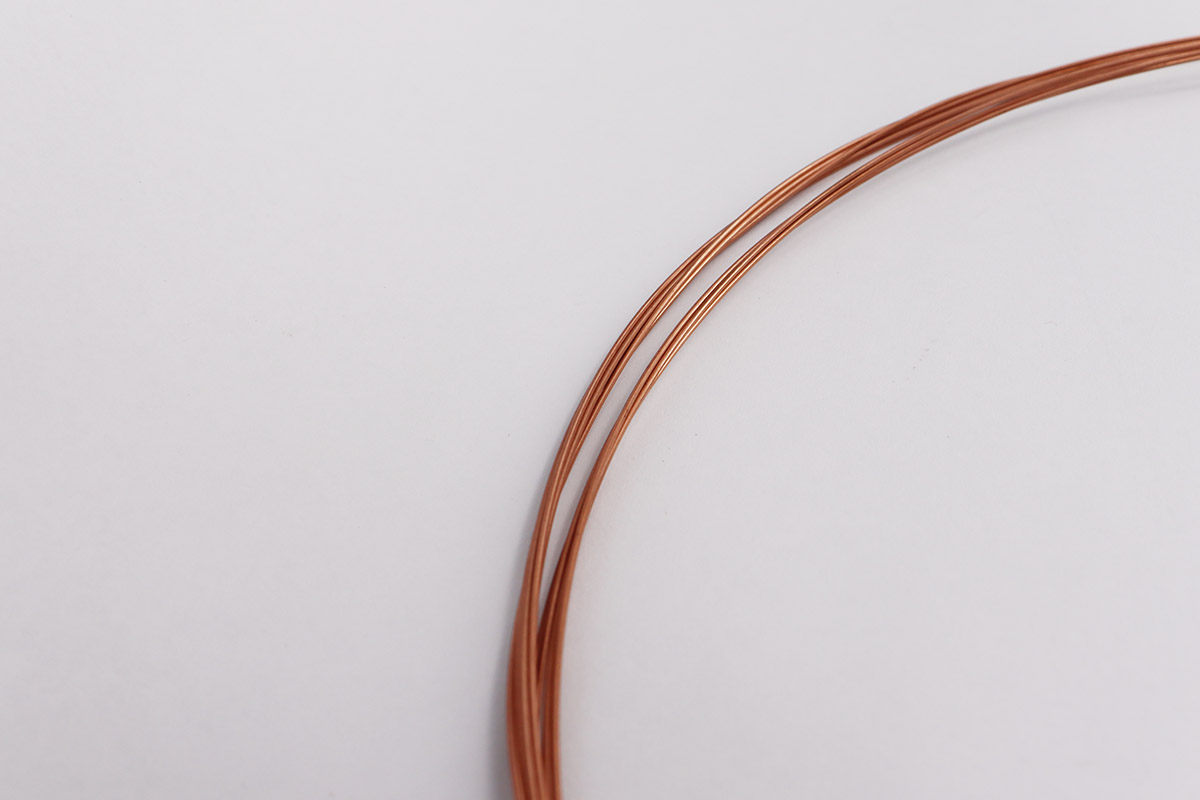

　　Bead wire is the steel wire made of high-carbon steel whose surface is plated with red copper or bronze. By improving bead wire s strength and antifatigue property within the same intensity of tires. it can decrease the consumption of bead wire and weight of tires, and also reduce rolling resistance and save energy and costs of tires.

　　Tire bead wire is a type of tire skeleton material, which is made of high carbon wire rod and is applied to manufacture of various tires for bikes, motorcycle, cars, trucks as well as other vehicles.

Product Details

Product Parameters

Diameter mm	NT		HT		Torsion (Times/360°) ≥	Elongation of Break % ≥	Yield ratio % ≥
Diameter mm	Breaking Force FN ≥	Tensile Strength Mpa ≥	Breaking Force FN ≥	Tensile Strength Mpa ≥	Torsion (Times/360°) ≥	Elongation of Break % ≥	Yield ratio % ≥
0.78	930	1950	1030	2150	50（200d）	5	85
0.80	980	1950	1080	2150	50（200d）	5	85
0.89	1210	1950	1340	2150	50（200d）	5	85
0.95	1345	1900	1490	2100	50（200d）	5	85
0.96	1340	1850	1530	2110	50（200d）	5	85
1.00	1450	1850	1630	2080	22（100d）	5	85
1.20	2035	1800	2400	2120	22（100d）	5	85
1.55	3360	1780	3800	2015	22（100d）	5	85
1.65	3805	1780	-	-	22（100d）	5	85

Application Area
