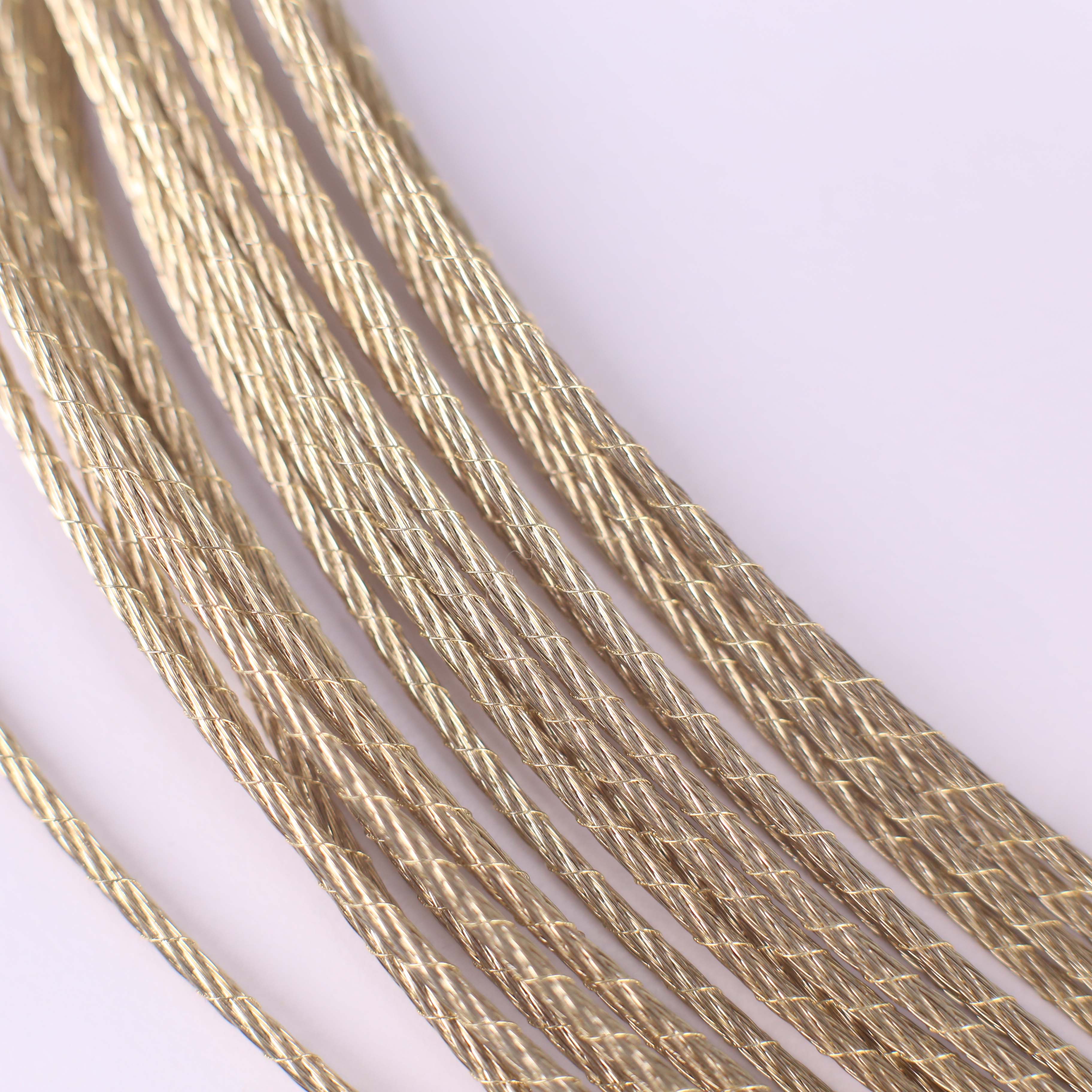

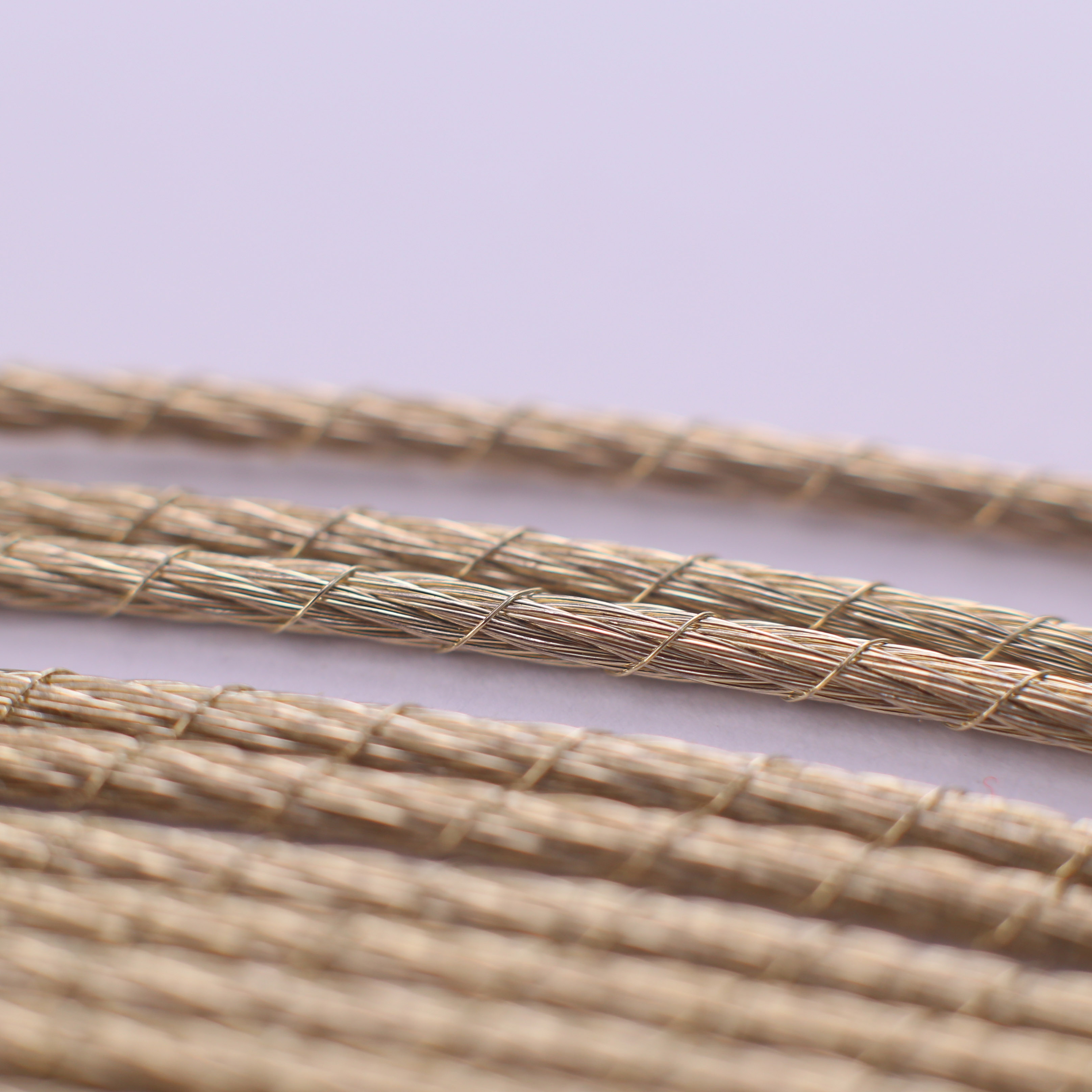

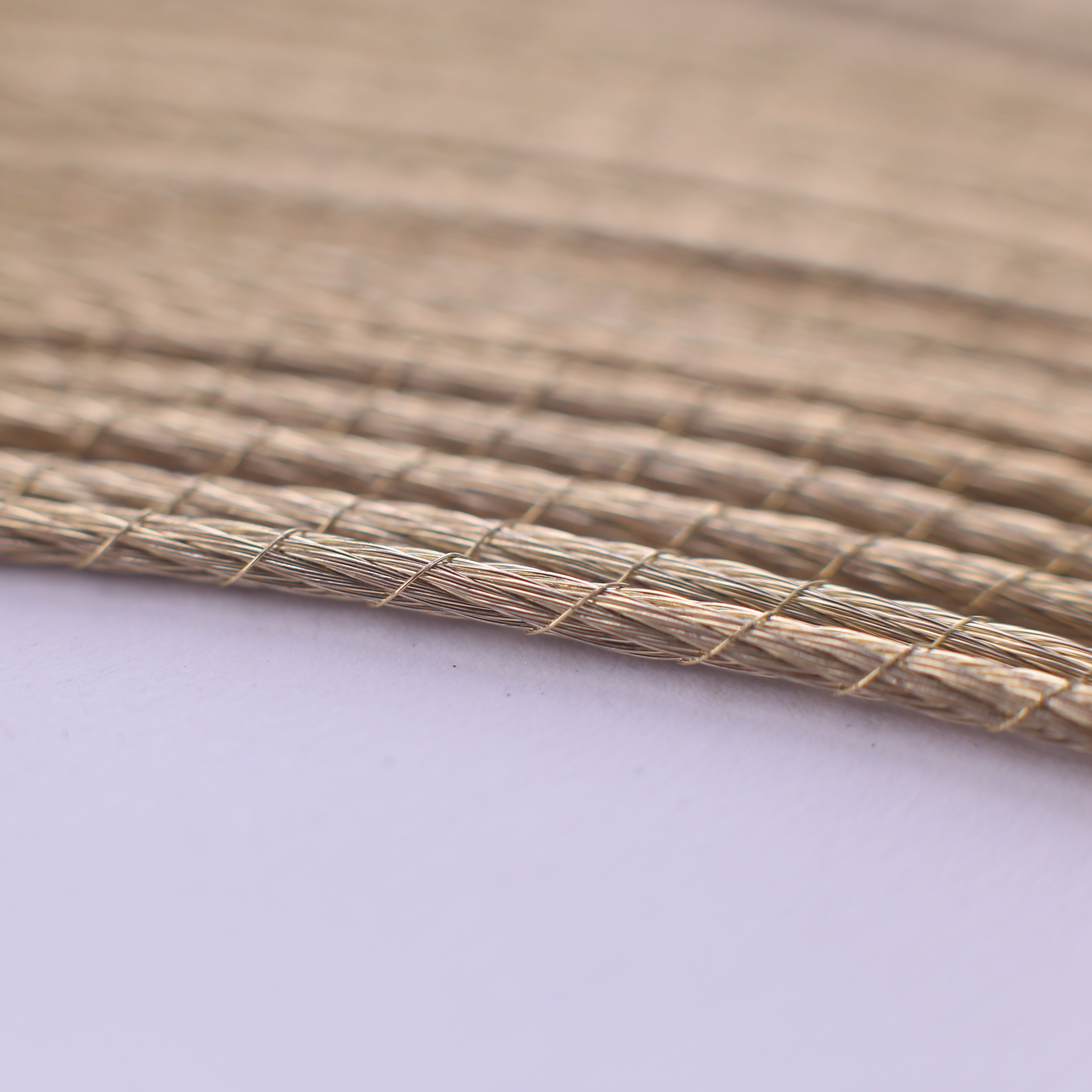

7×7×0.22+0.15HT

OTR Steel Cord

Description

　　The OTR tire is mainly used in various giant engineering vehicles in the mine, including excavators, scrapers, graders, large dump trucks, tippers and other engineering machinery. Their common feature is that they have heavy loads and poor service conditions. This puts forward higher quality requirements for the steel cord as its main framework material.

Product Details

Product Parameters

Construction

Lay Length（mm）

Lay Direction

Wire Diameter（mm）

Cord Diameter（mm）

Linear Density（g/m）

Breaking Force（N）

Breaking Force of Weld

Breaking Elongatio（%）

Partial Load Elongation（PLE%）

Copper Content（Cu%）

Plating Weight（g/Kg）

Warning Limit

Inner Control Limit

7x(3+9+15x0.245) +0.245HT

6.3±0.32/ 12.5±0.63/ 18±0.9/ 55±2.75/ 5.0±0.25

ZZZSZ

0.245±0.01
0.245±0.01

4.84±0.24
Internal Standard：≤4.95

73.9±3.69

－

≥22300

－

63.5±2.5

4.0±1.0

7x (3+9x0.245) +0.20HT

6.3±0.315/ 12.5±0.625/ 6.3±0.3/ 12.5±0.625/ 28±1.4/ 5±0.25

ZZSSZS

0.245±0.01
0.20±0.01

3.30±0.17
Internal Standard：≤3.38

33.07±1.16

－

≥9000

－

63.5±2.5

3.5±0.7

7x (3+9x0.245)HT

6.3±0.6/ 12.5±1.2/ 6.3±0.6/ 12.5±1.2/ 29.0±2.9

ZZSSZ

0.245±0.01

3.10±0.150

32.52±1.630

－

≥9000

－

63.5±2.5

4.0±1.0

7x (3+9+15x0.175) +0.20HT

5±0.25/ 10±0.5/ 16±0.8/ 5±0.25/ 10±0.5/ 16±0.8/ 38±1.9/ 5±0.25

SSSZZZSZ

0.175±0.01
0.2±0.01

3.60±0.18
Internal Standard： ≤3.69"

37.5±1.31

－

≥11470

－

63.5±2.5

4.9±1.0

4x6x0.25HE

5.7/9.5±5%

0.25±0.006

1.82±0.11

10.17±0.51

≥2510

≥2485

≥994

≥4.0

－

63.5±2.5

3.4±0.7

7x(3+9+15x0.22) +0.20HT

6.3±0.315/ 12.5±0.625/ 18±0.9/ 6.3±0.315/ 12.5±0.625/ 18±0.9/ 48±2.4/ 5±0.25

SSSZZZSZ

0.22±0.01
0.20±0.01

4.42±0.22
Internal Standard：≤4.53

59.16±2.07

－

≥17955

－

63.5±2.5

3.9±0.8

7x 7x0.22+0.15HT

12.5±0.625/ 20±1/ 5±0.25

ZSZS

0.22±0.01
0.15±0.01

2.24±0.11
Internal Standard：≤2.30

15.2±0.64

－

≥5120

－

63.5±2.5

3.9±0.8

7x (3+9x0.30) +0.20HT

12.5±0.6/ 18±0.9/ 12.5±0.625/ 18±0.9/ 32±1.6/ 5±0.25

ZZSSZS

0.30±0.01
0.20±0.01

4.11±0.21
Internal Standard：≤4.21

49.27±1.72

－

≥15700

－

63.5±2.5

3.4±0.6

Application Area
